The Right Lithium Battery for Your Outboard Electric Motor

For any Electric Trolling motor with a working voltage of 12V we recommend the 12V Pro Box. Where many suppliers come up with all kinds of graphs, tables and fancy calculations, we at Outdoorcells.com on our developed Smart BMS with accompanying Bluetooth App. Via your Smart Phone you can monitor the energy consumption in real time in both Ampere (A) and Watt-hour (Wh). This info about lithium battery is super convenient!

Reliable Data From the App

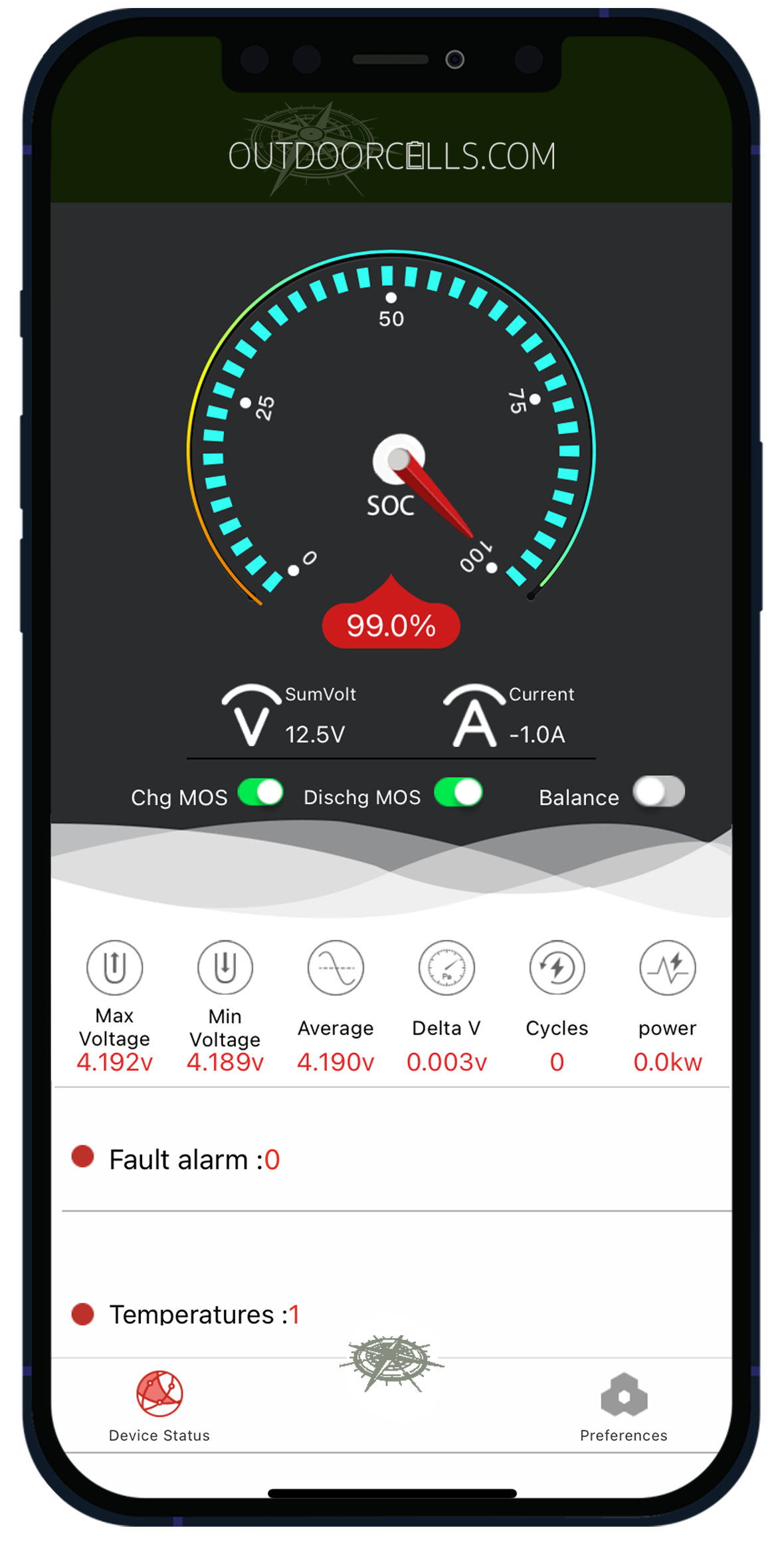

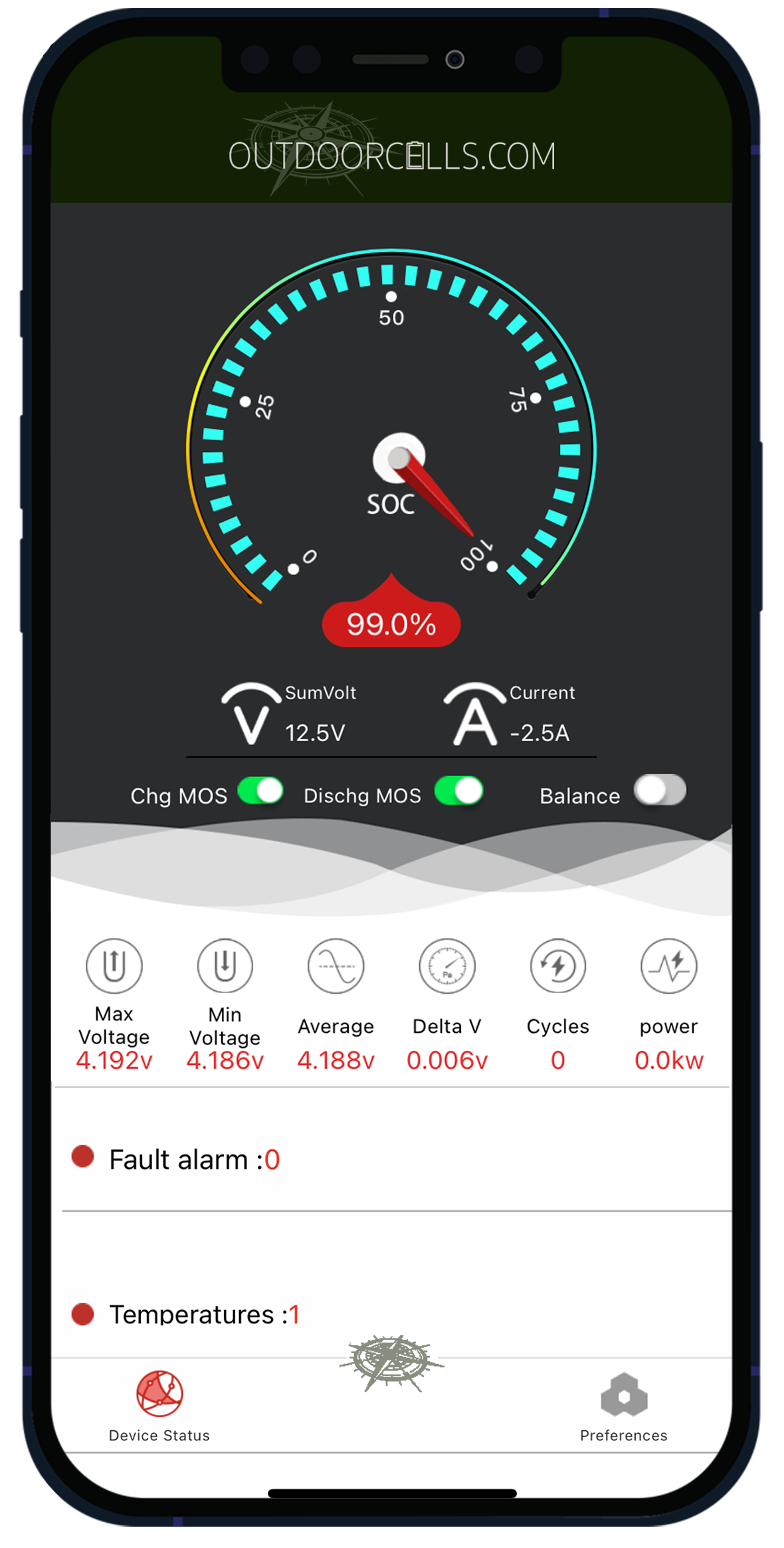

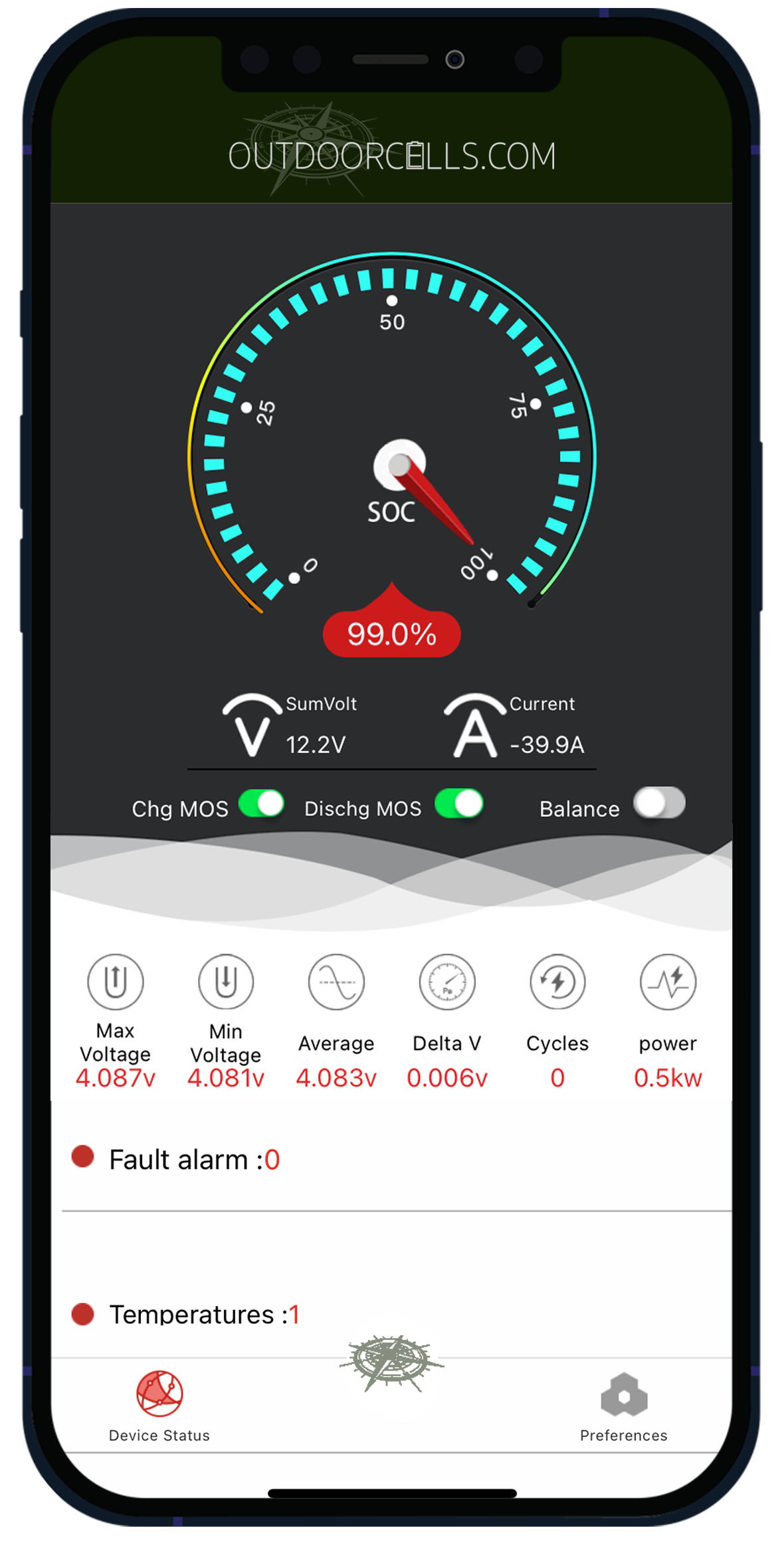

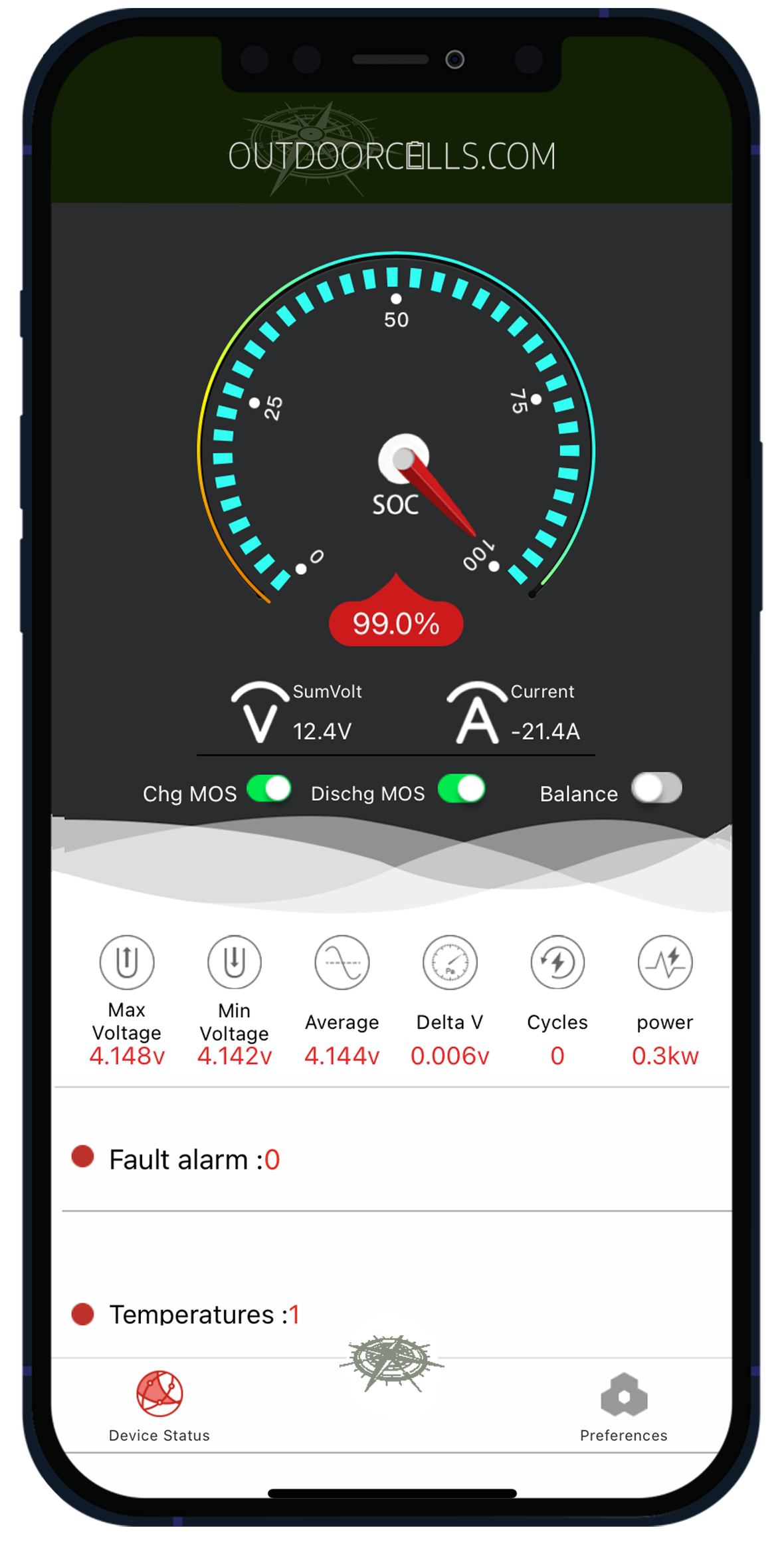

For example, sailing at 50% power, a Minn Kota Traxxis Trolling motor consumes about 20 Amps (A). This means that with the OUTDOORCELLS Lithium- ion Battery 12V-60Ah Pro Box you can sail for at least 3 Hours at 50% power 60(ah) / 3(hours) = 20(A). Of influence are the weight of the boat, the type of boat and the conditions (wind, waves and current) The images below are the result of the test at different powers from 10% to 100%. The test was performed with the OUTDOORCELLS LITHIUM-ION ACCU 12V 70Ah PRO BOX - Minn Kota Traxxis 55Lbs Trolling motor behind a 330cm Rubber Boat with two people on board.

Connecting more devices

At outdoorcells we get more and more questions from customers if it is also possible to connect other devices like inverters and cool boxes. With the extensive range of connection cables and adapters all 12V devices can be connected to every Lithium Outdoorbox. This makes your Lithium Outdoorbox more widely usable when you are not using it for the electric motor. For example, use it as a large power bank to charge all your USB devices. It is also possible to connect inverters so that 230V is available everywhere. To make it even easier we developed the stackable modules. With these you transform your Outdoorbox into a full-fledged energy station. With the optional solar box and solar panel you can keep the Outdoorbox powered and use the generated solar energy immediately or later.

Stackables

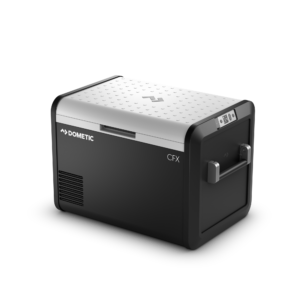

The compact stackable Outdoor boxes in the stackable series are designed to power any device. Add an Inverter box, for example, and you have 230V at the waterfront! Do you want longer away from home and infinite energy? Then it is possible to add a solar charger (solarbox) and solar panel. The Solarbox has all outputs such as USB, 12V and a special ENGEL connection for Dometic CFX3 Compressor Coolboxes. In addition, there is an Input for the solar panel with which you charge the linked Outdoorbox. In the picture from bottom to top: Blue=Lithium Battery Black=Solarbox Yellow=Inverter box 12V~230V. With this combination you are completely independent of the wall socket and you can charge the batteries of your fishing boat and handheld transmitter at the waterfront! View HERE all products in the Stackable-Series

a stable connection between device and battery

The vast majority of battery and energy products are offered without a plug. The most common connections are the battery poles as with a conventional lead-acid battery or a screw connection. These connections can cause problems over time as the metal is exposed to weathering. This can lead to corrosion and rust which can cause a variety of problems. Think of poor performance of your motor but also damage to the battery! The Outdoorcells Lithium and Sodium Outdoorboxes are therefore always equipped with original Anderson plugs. These plugs do not rust and also have a very low resistance so devices continue to function better, even after years of intensive use. In addition, the cables have the correct diameter and temperature specifications so you can connect the most powerful 12V whisper motors without any worries!

Headlamp and Phone charging

Not all of our Outdoorboxes have a USB outlet to charge phones and tablets, for example. 8 Years of experience have taught us that 12V cigarette plugs, USB connections make an Outdoorbox not 100% waterproof anymore. To still be able to connect your USB devices and/or 12V cigarette plugs we offer several adapters which easily fit in your fishing bag. Advantage is that your Outdoorbox is guaranteed waterproof when you use it in the boat for your whisper motor, even during heavy rain. Put the Outdoorbox in a dry place, in your tent for example and easily connect a adapter for example USB to charge all your devices. After charging your head lamps, bivvy lamps and phone, store the adapter dry again in your fishing bag.
